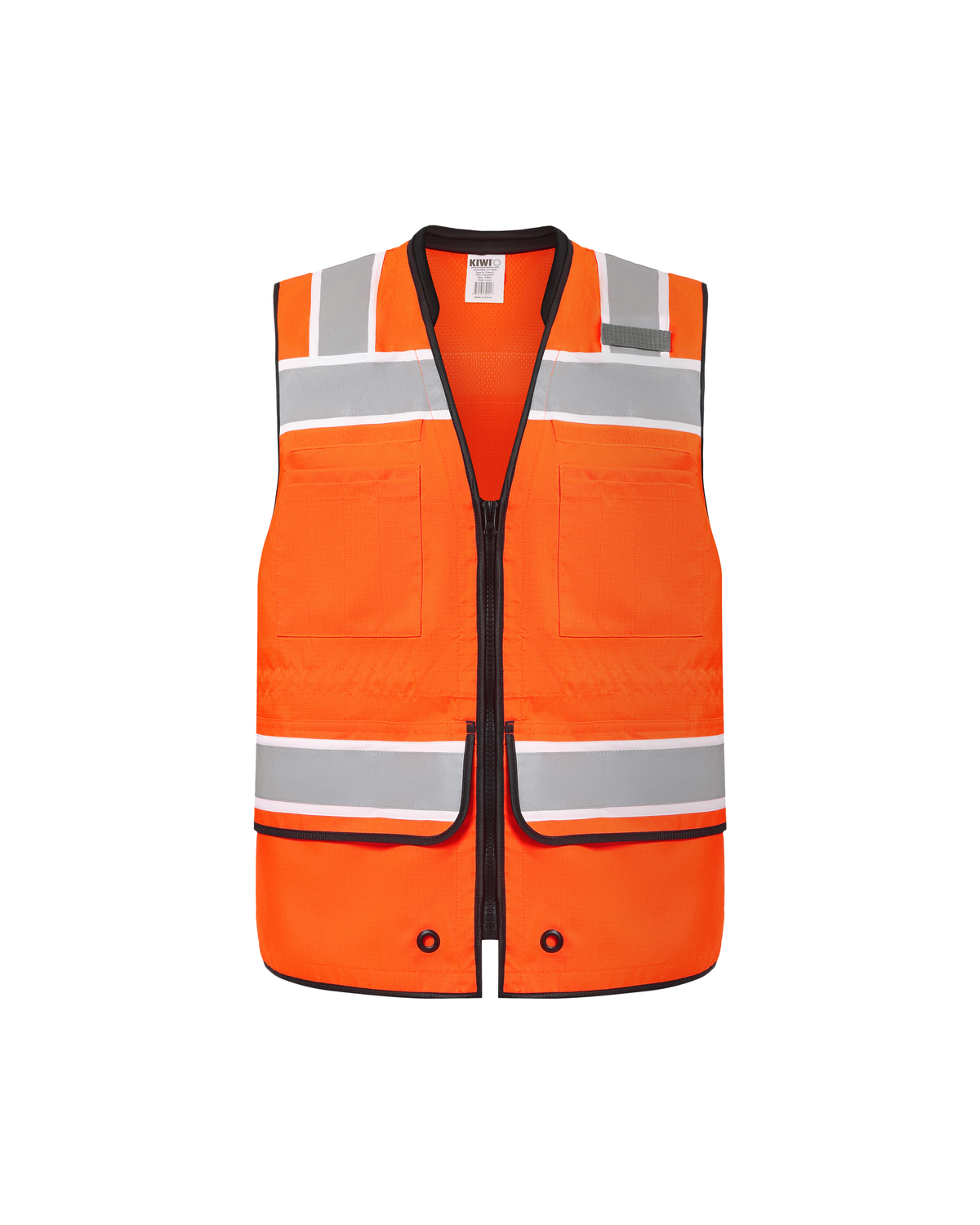

Kiwi Sightline 704 orange Class 2 surveyor safety vest, front view

Kiwi Sightline 704 orange Class 2 surveyor safety vest, back view

Kiwi Sightline 704 orange Class 2 surveyor safety vest, side view

Kiwi Sightline 704 orange surveyor safety vest, front with waist drawcord cinched

Heavy-duty molded front zipper on the Kiwi Sightline 704 surveyor vest

Padded mesh collar and Kiwi neck label on the Kiwi Sightline 704 vest

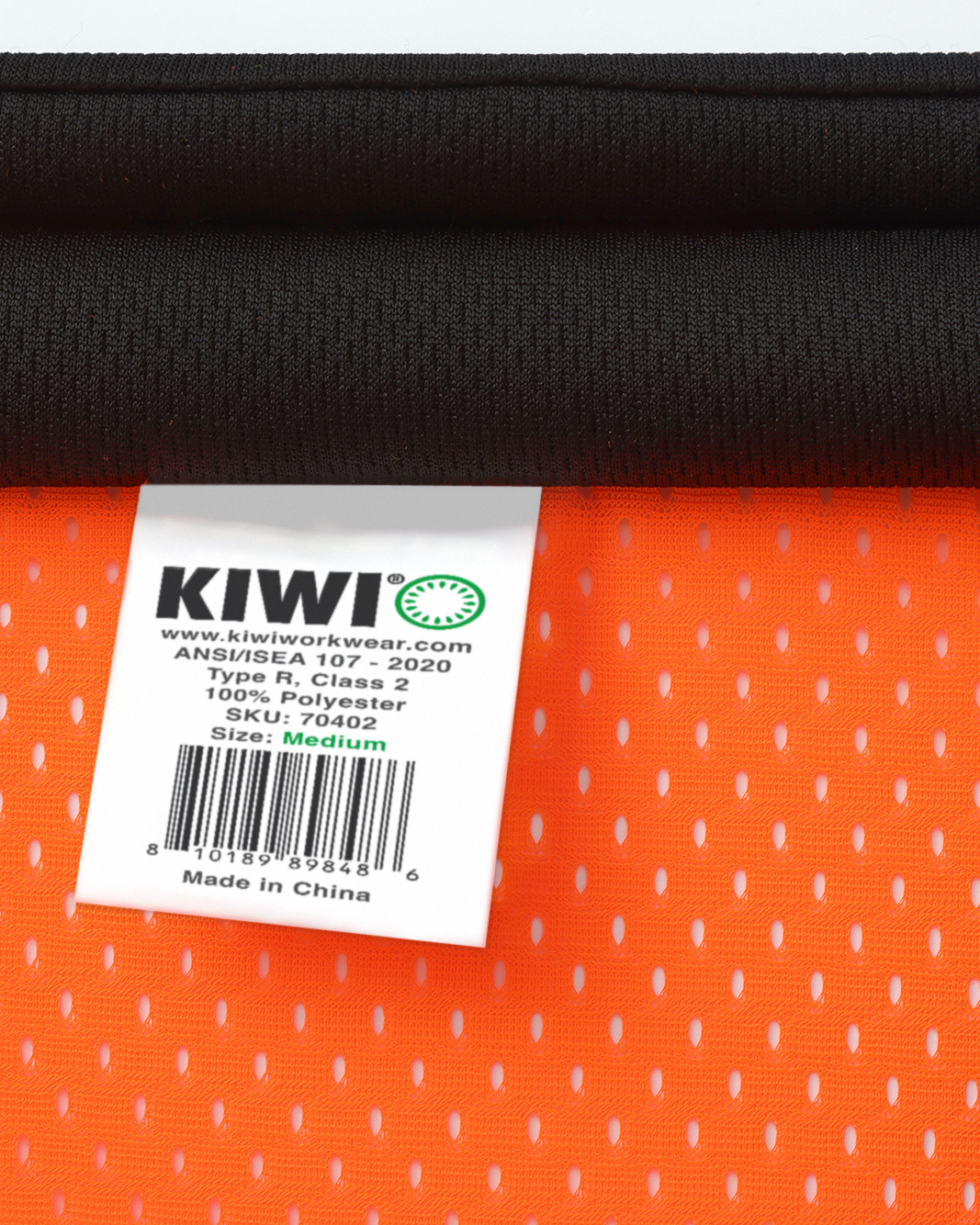

Kiwi neck label: ANSI/ISEA 107-2020 Type R Class 2, 100% polyester

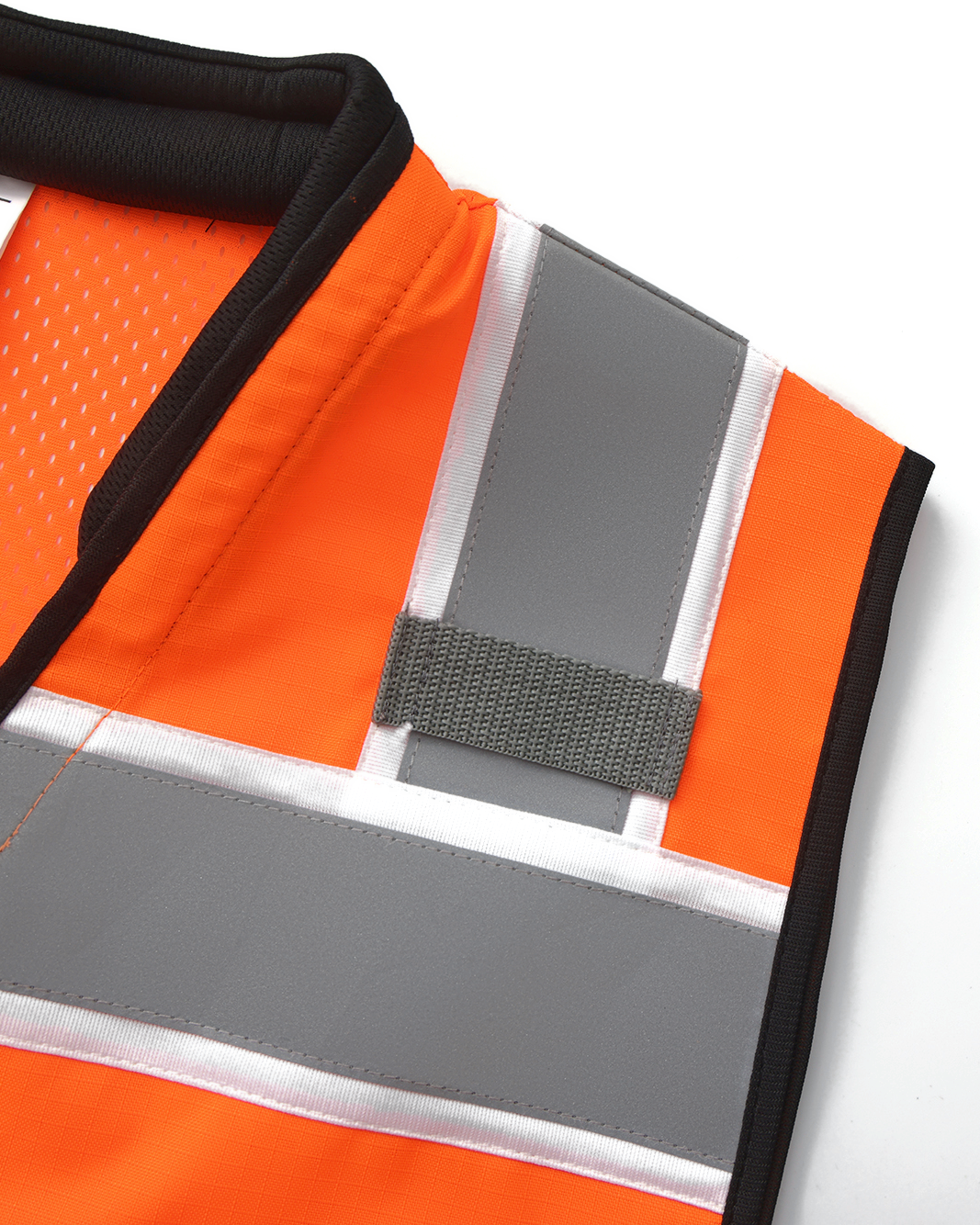

Shoulder mic tab on the reflective stripe of the Kiwi Sightline 704 vest

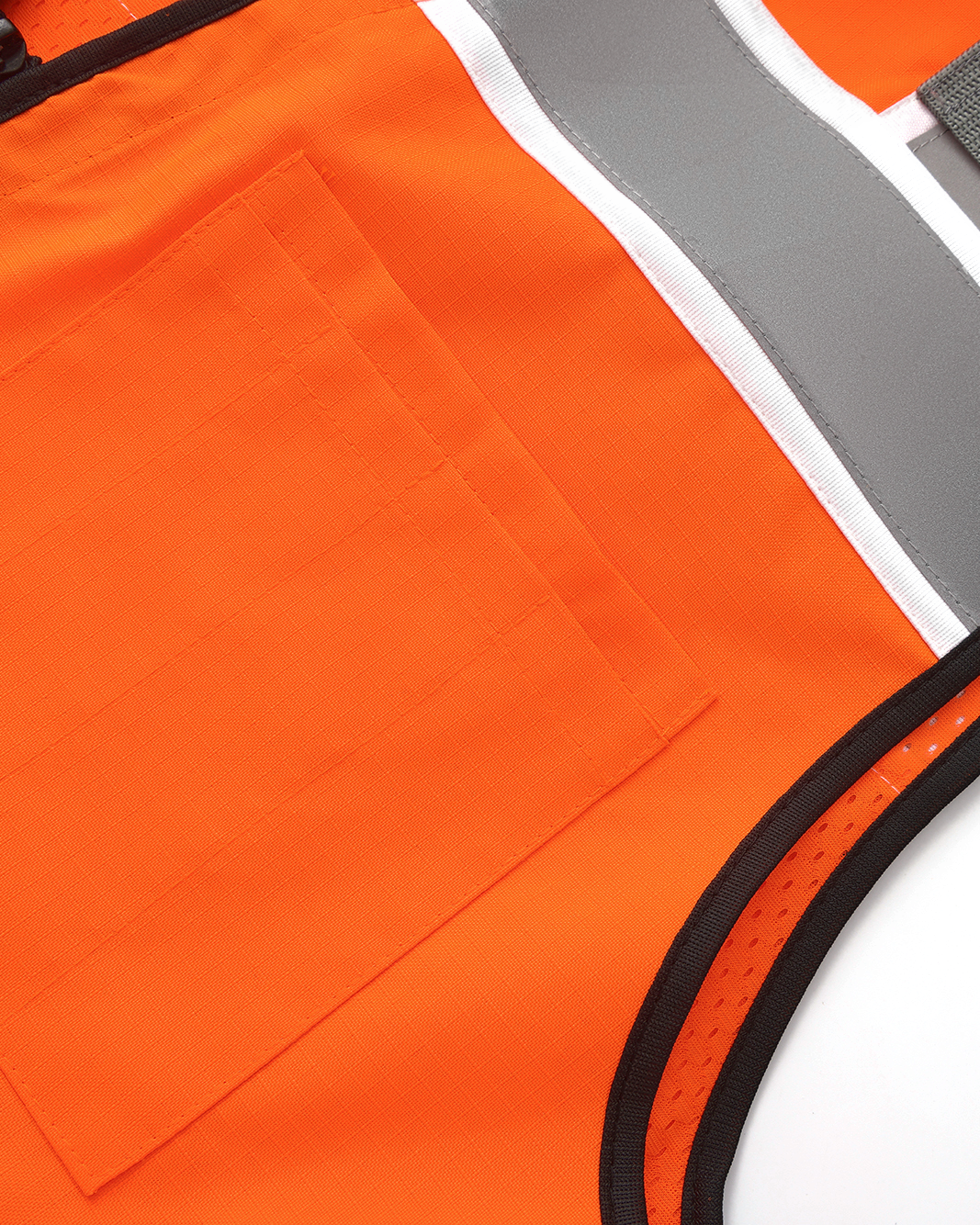

TerraWeave ripstop chest pocket on the Kiwi Sightline 704 vest

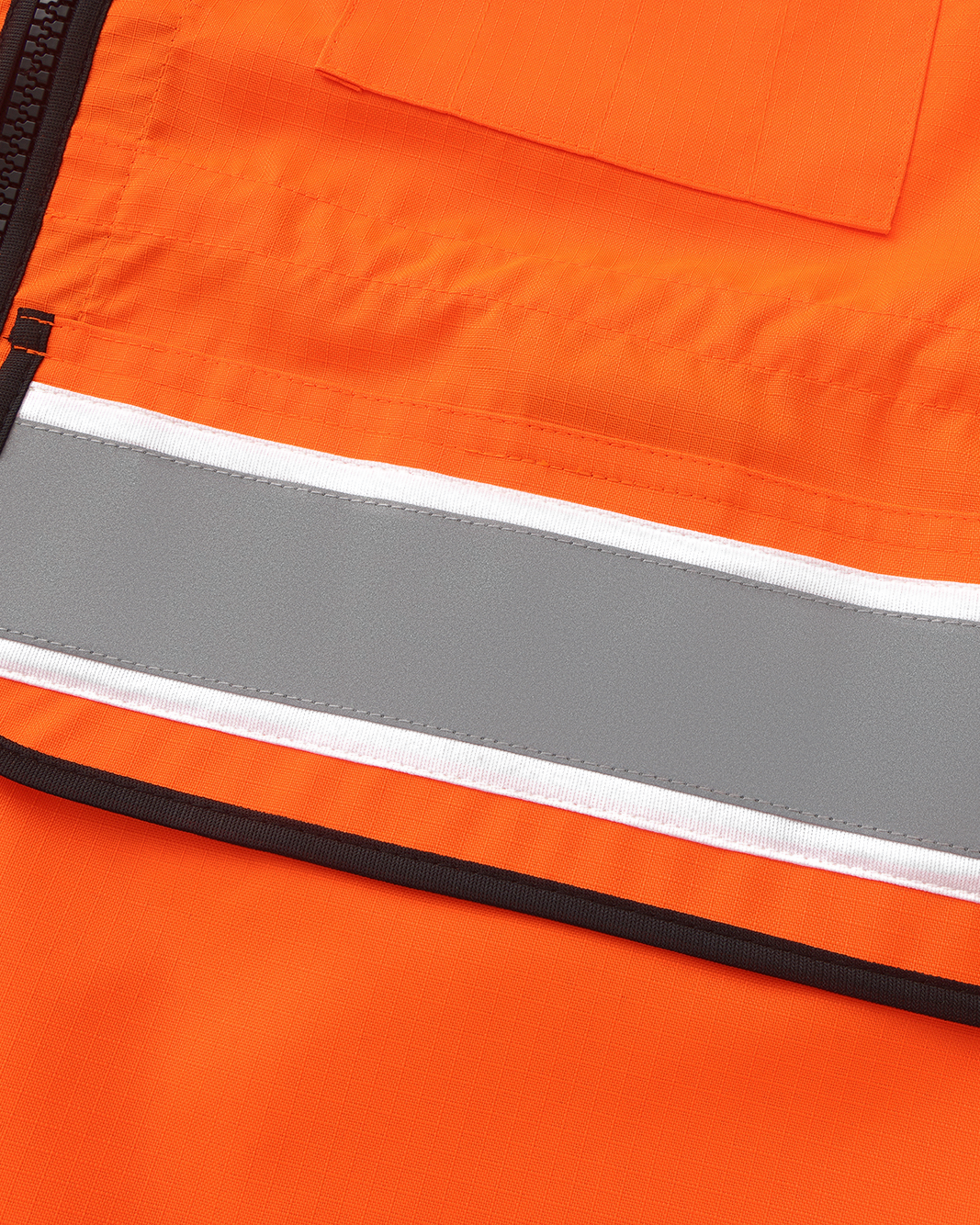

Flap-covered lower pocket with reflective band on the Kiwi Sightline 704 vest

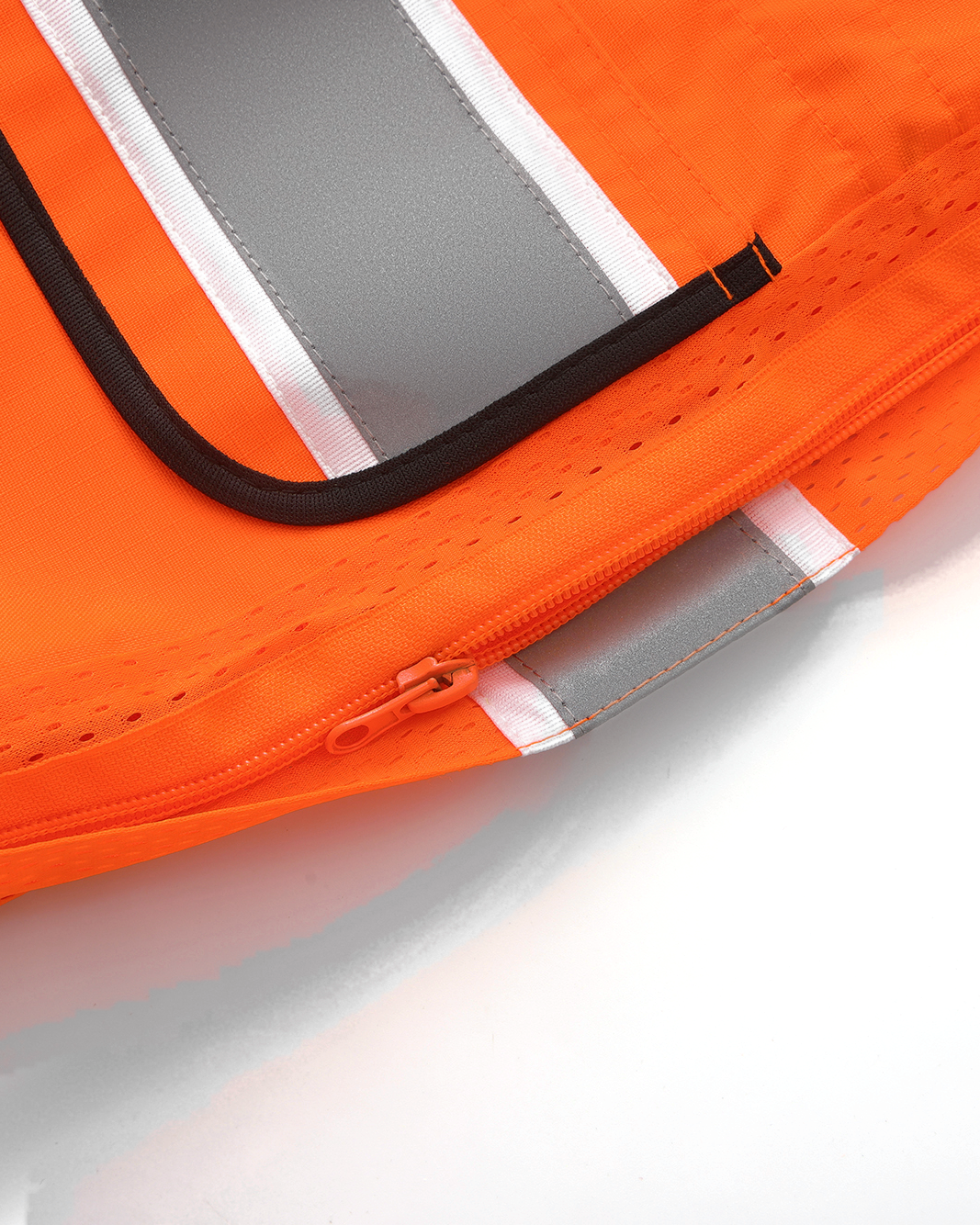

Side zipper of the back pocket on the Kiwi Sightline 704 vest

Inside waist drawcord with cord lock on the Kiwi Sightline 704 vest

Front hem grommets for flagging tape on the Kiwi Sightline 704 vest

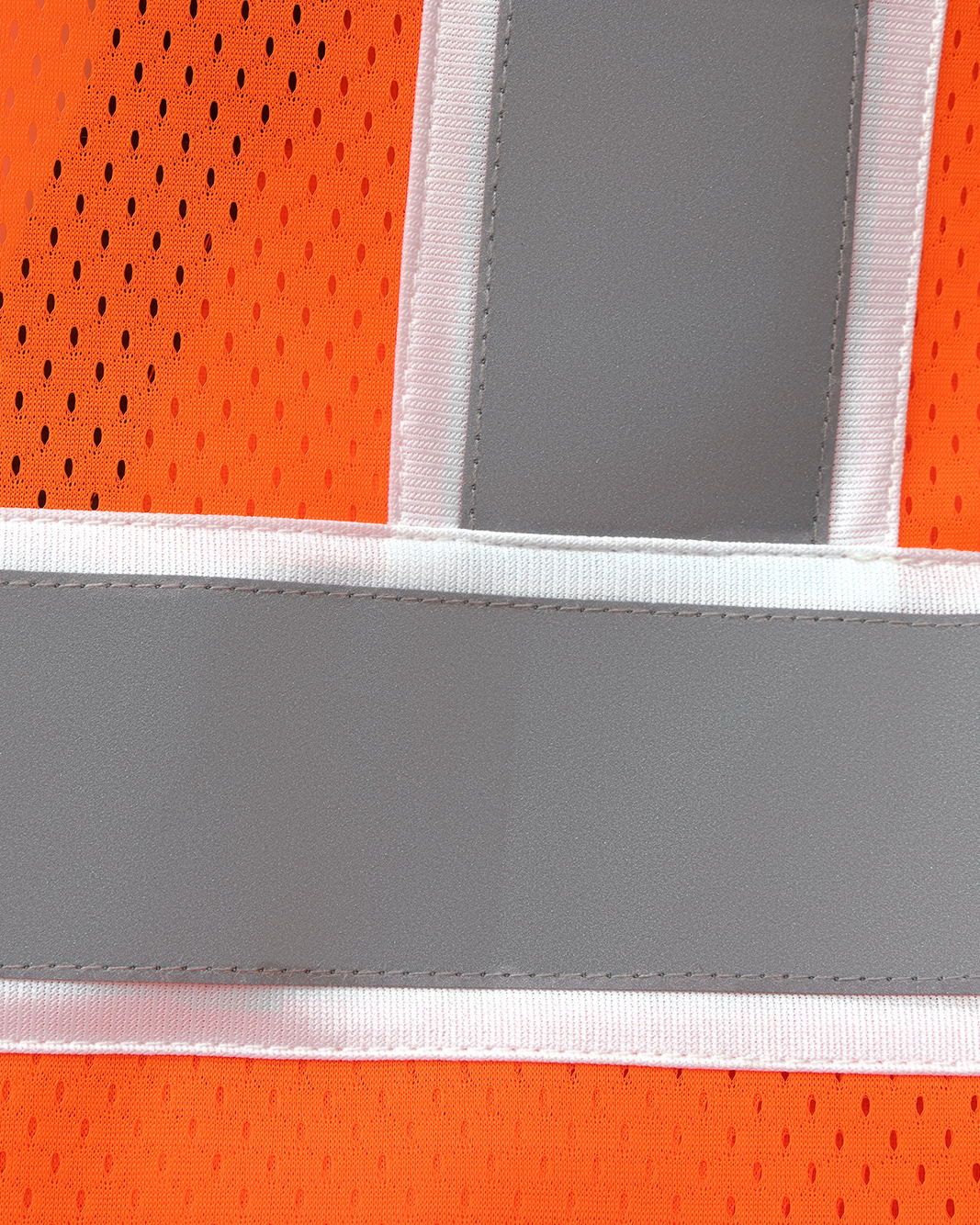

2-inch silver reflective tape with white contrast trim on the Kiwi Sightline 704 vest

AirMesh breathable mesh back of the Kiwi Sightline 704 vest

Kiwi Sightline High Visibility ANSI/ISEA 107-2020, Type R, Class 2 Dual Band Contrast Trimmed Orange Surveyor Safety Vest [70400]

ANSI/ISEA 107-2020 | Type R | Class 2 Compliant

70401

$39.99

Order and receive 39 Points with Kiwi Rewards

Size Small

Small Medium Large X - Large 2X - Large 3X - Large 4X - Large 5X - Large

Size Chart & Fit Guide

Item is out of stock

Free shipping on orders over $100. You're $100 away from free shipping. Your order ships free.

Same-day shipping on orders placed Monday to Friday before 3PM.

Free 30-day returns.

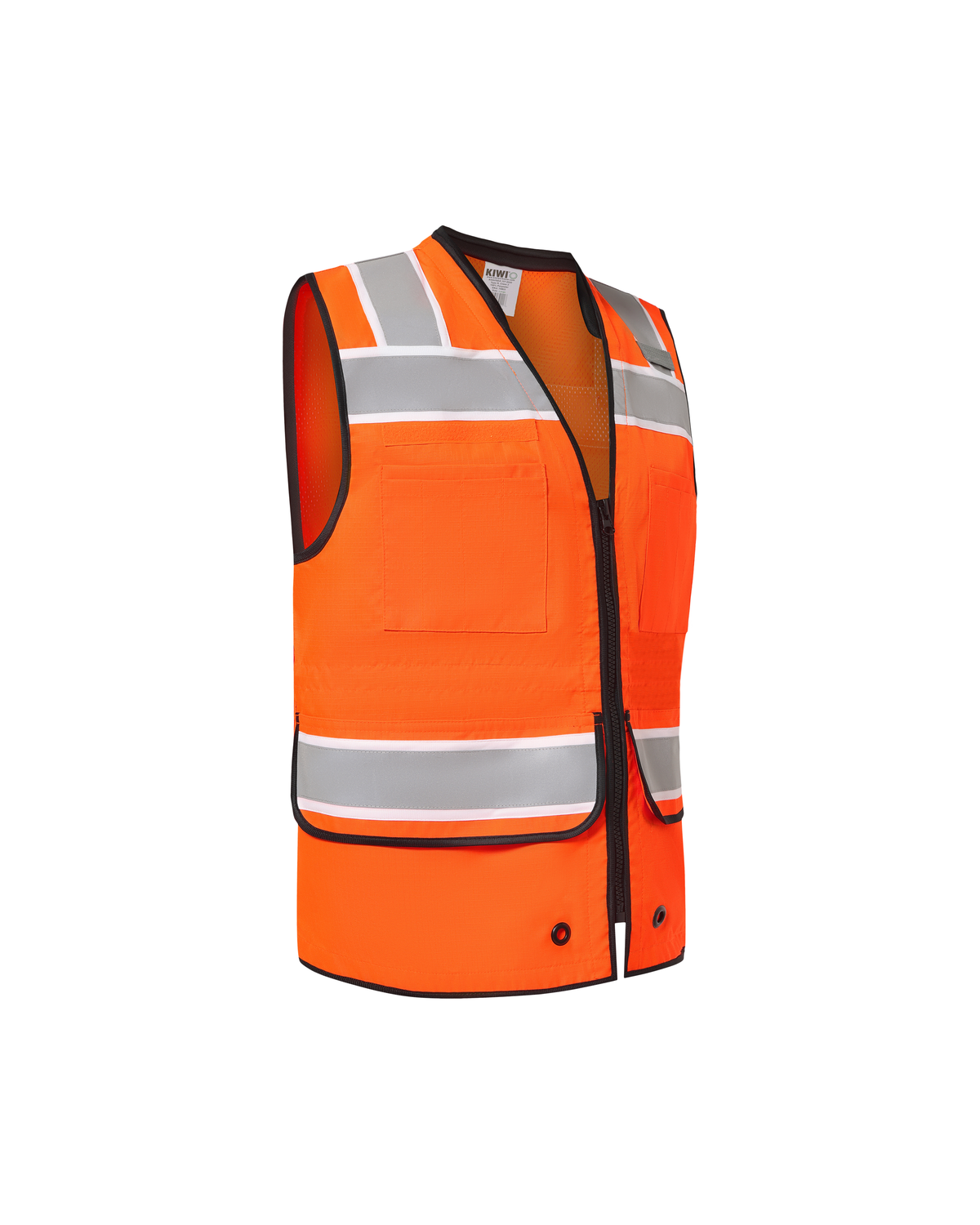

The Kiwi Sightline is an orange Class 2 surveyor vest for crews who carry a tablet and a radio on the job.

It is compliant with ANSI/ISEA 107-2020, Type R, Class 2. That covers work near roadways or equipment where traffic moves from 25 to 50 mph. For traffic above 50 mph or work at night, you need a Class 3 garment.

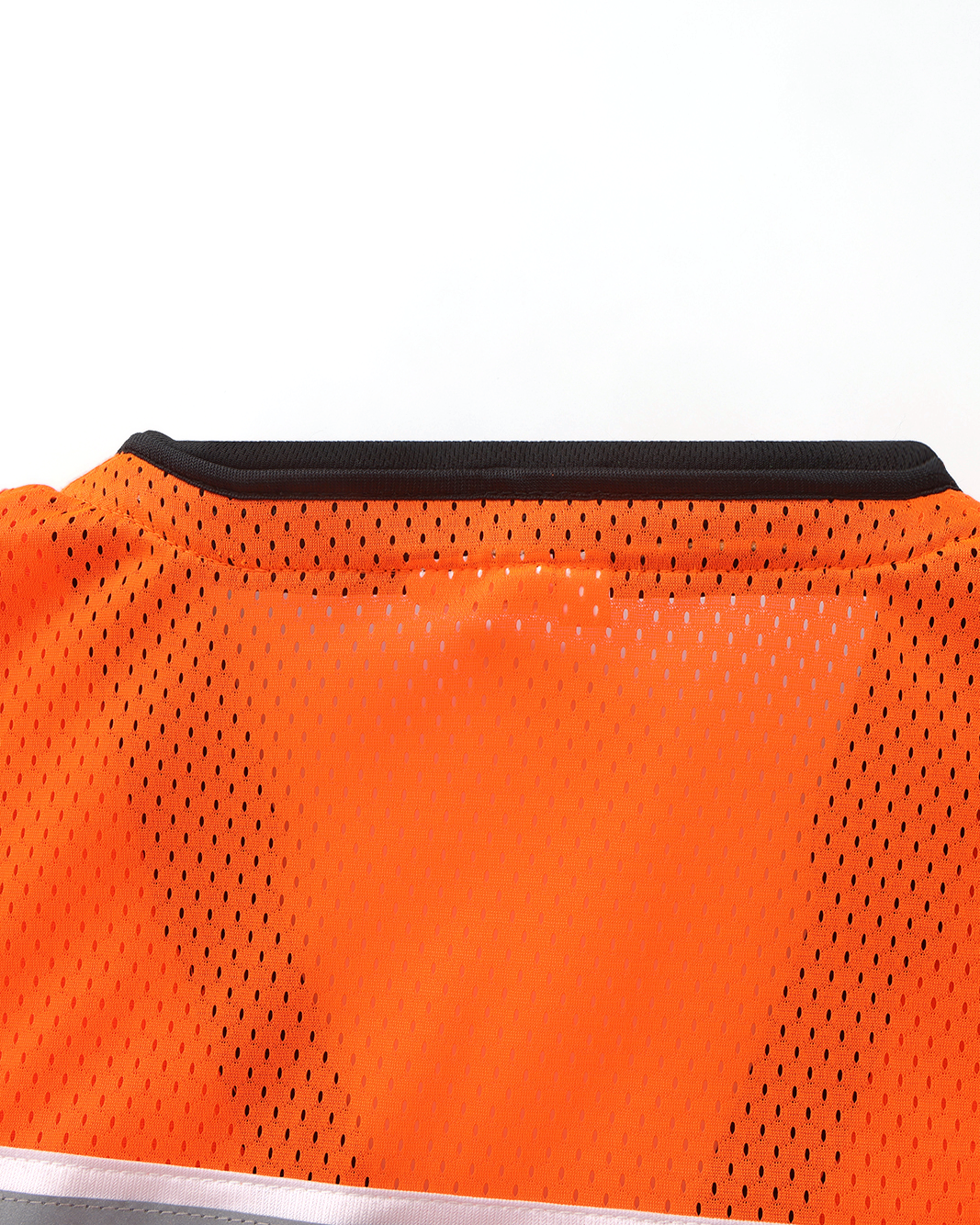

The front panels are TerraWeave™ ripstop polyester, and the grid weave stops a small snag from running into a tear. The back and sides are AirMesh™ breathable polyester mesh, which keeps air moving on hot job sites and leaves room for a layer underneath when the weather cools.

Dual band Noctis 360+™ 2-inch silver reflective tape is edged with white contrast trim. It reflects 465 cd/(lx·m²) on new reflectors, well above the ANSI minimum of 330, and holds its rating through 50 washes. Two bands circle the body and stripes run over both shoulders, so headlights catch you from any direction.

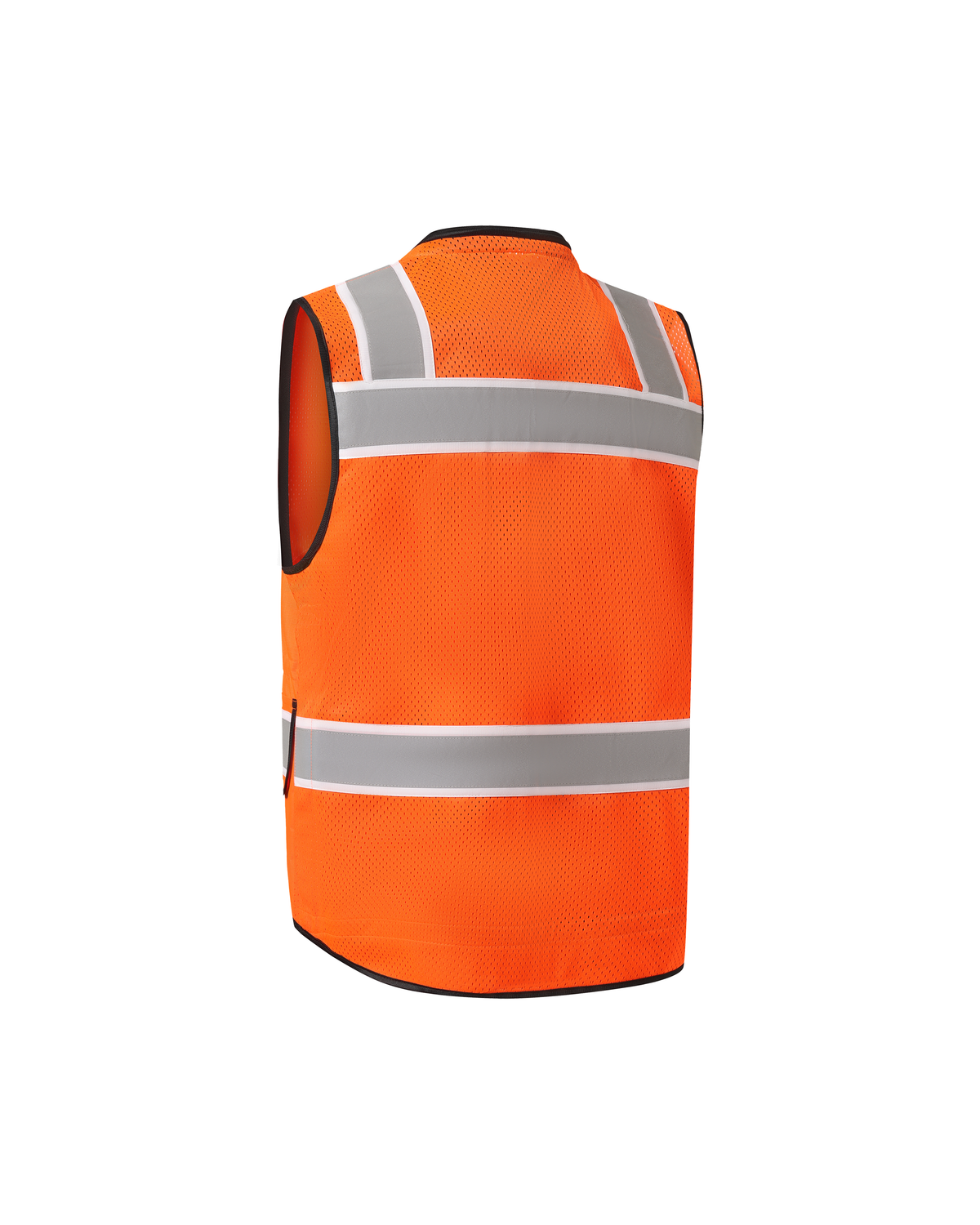

A large back pocket zips open from either side and takes an iPad, plans or other gear. Up front there are two chest patch pockets and two large flap-covered lower pockets. Two grommets at the front hem hold flagging tape. A mic tab on the shoulder holds a radio mic.

The heavy-duty molded non-conductive zipper works with gloves on. Internal drawcord waist adjusters with cord locks on both sides cinch the fit. The padded mesh collar keeps your neck comfortable through a long shift. Black binding finishes every edge, and the fabric is anti-static, so it cuts down on cling and shocks.

Relaxed cut that layers over uniforms or outerwear. Sizes Small to 5XL. 100% polyester.

Not flame resistant. Do not wear it where FR or arc-rated clothing is required.

Material (TerraWeave™ / AirMesh™): TerraWeave™ ripstop 100% polyester front panels stop small tears from spreading. Breathable AirMesh™ polyester mesh across the back and sides keeps air moving on hot job sites.

High Visibility (Noctis 360+™): Features dual band 2-inch silver reflective tape with white contrast trim and a coefficient of retroreflection of 465 cd/(lx·m²) on new reflectors, exceeding the ANSI/ISEA 107-2020 minimum of 330 cd/(lx·m²), for clear 360° visibility in daytime and nighttime conditions through 50 wash cycles.

Safety Rating: Compliant with ANSI/ISEA 107-2020, Type R, Class 2 standards for visibility in roadway, surveying, parking, warehouse and general work environments.

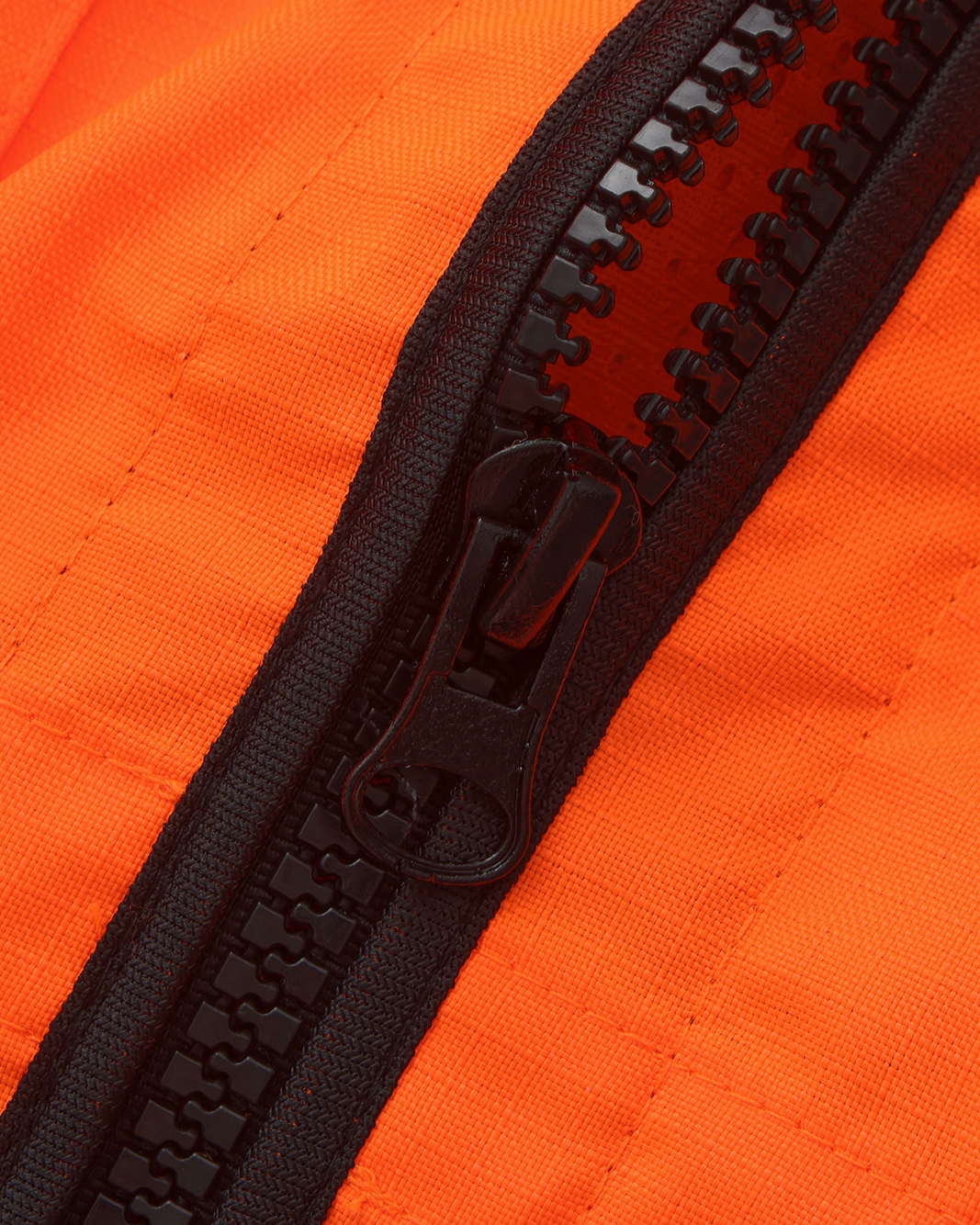

Front Closure: Heavy-duty molded non-conductive front zipper.

Back Pocket: Large back pocket zips open from either side and holds an iPad, plans and other gear.

Utility Pockets: Five pockets: two chest patch pockets, two large flap-covered lower pockets and the zippered back pocket.

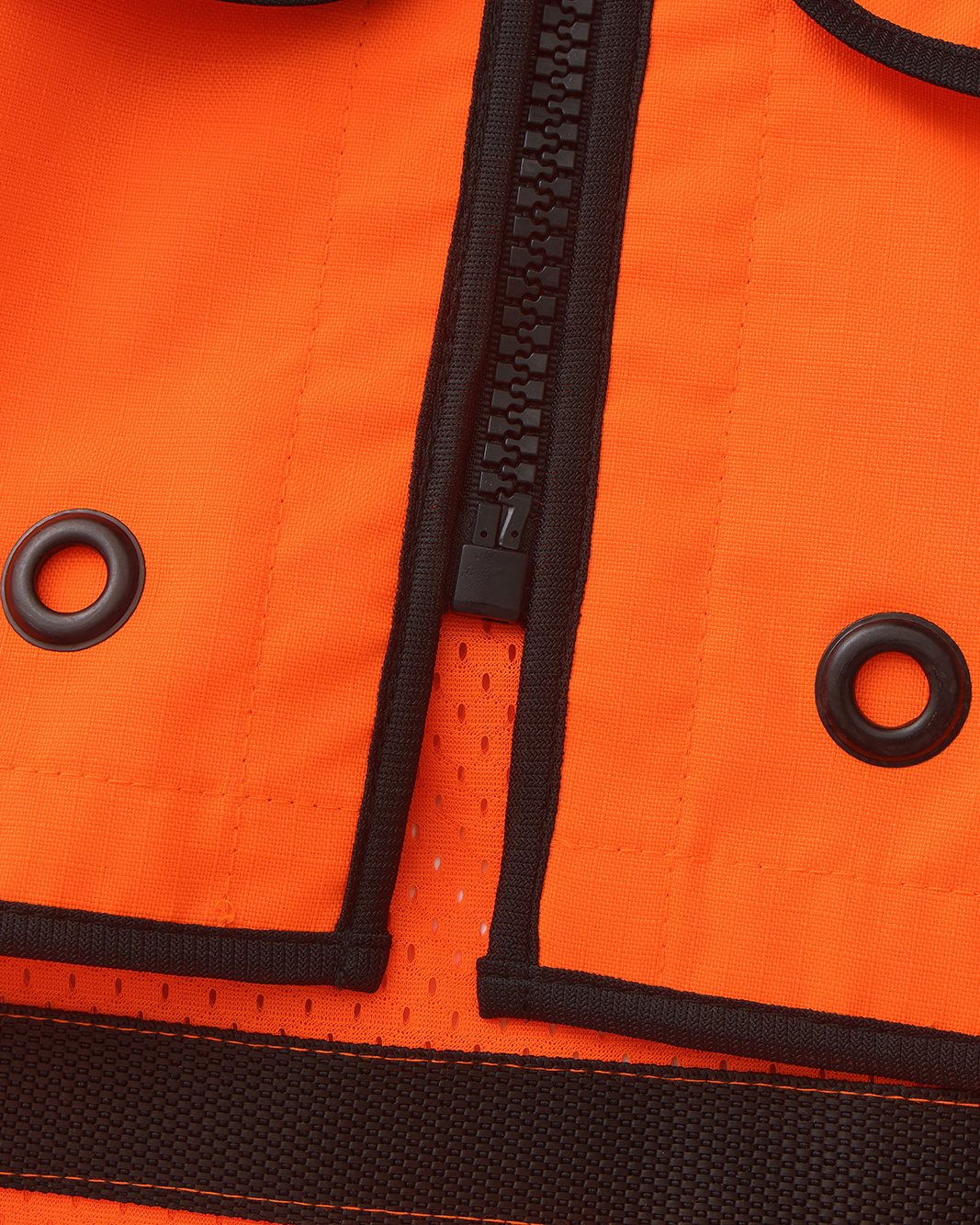

Flagging Tape Grommets: Two grommets at the front hem hold flagging tape.

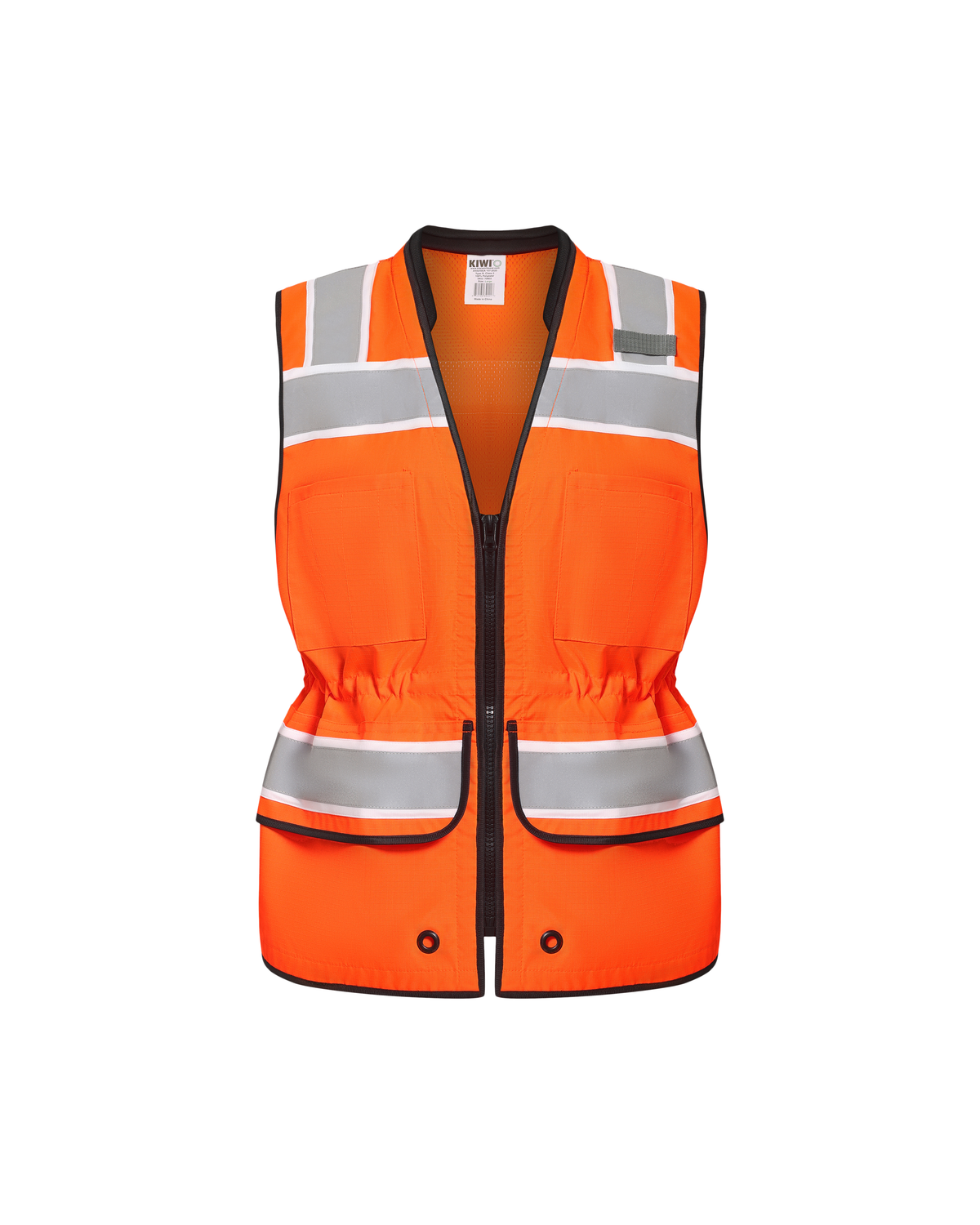

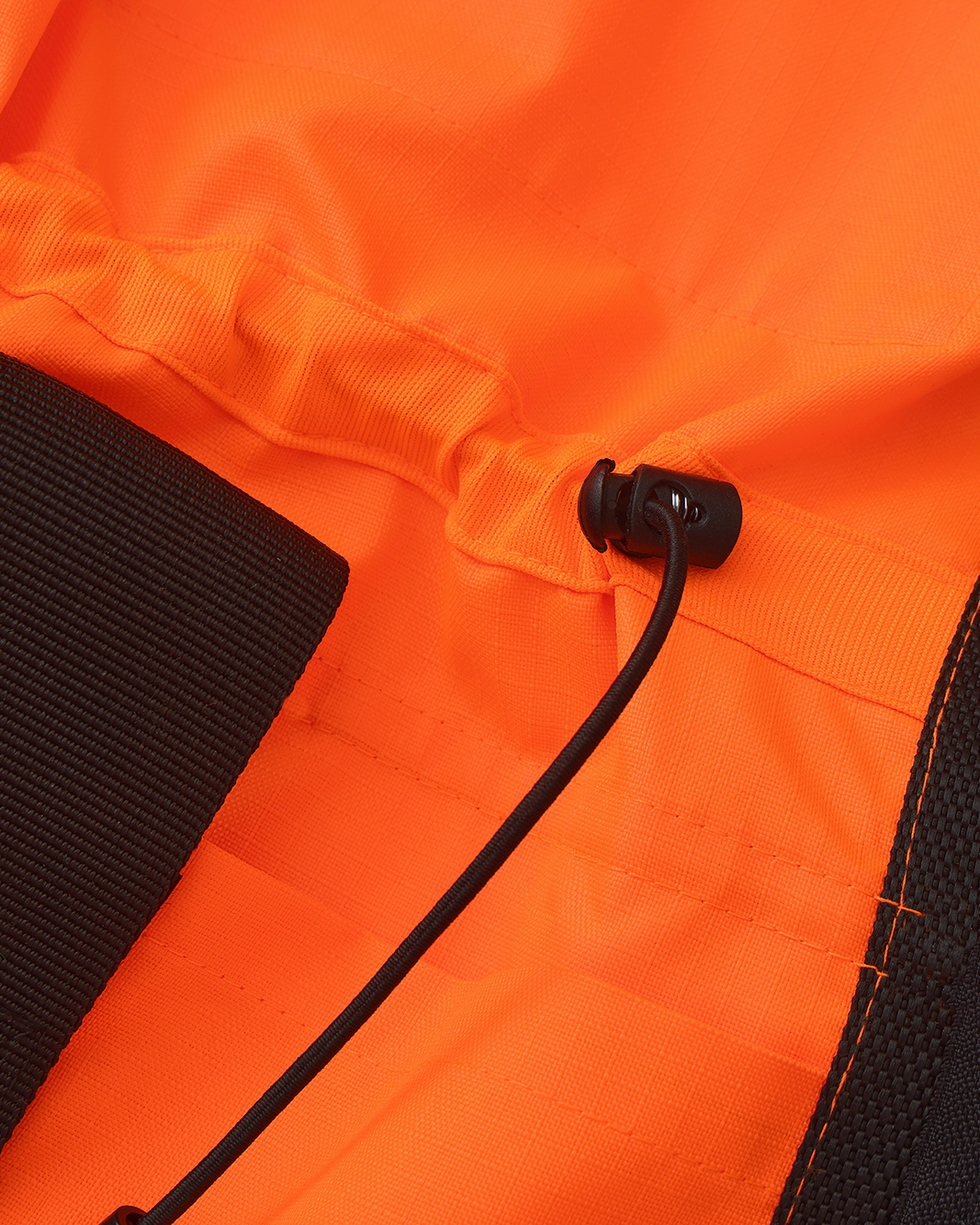

Waist Adjuster: Internal drawcord waist adjusters with cord locks on both sides cinch the fit.

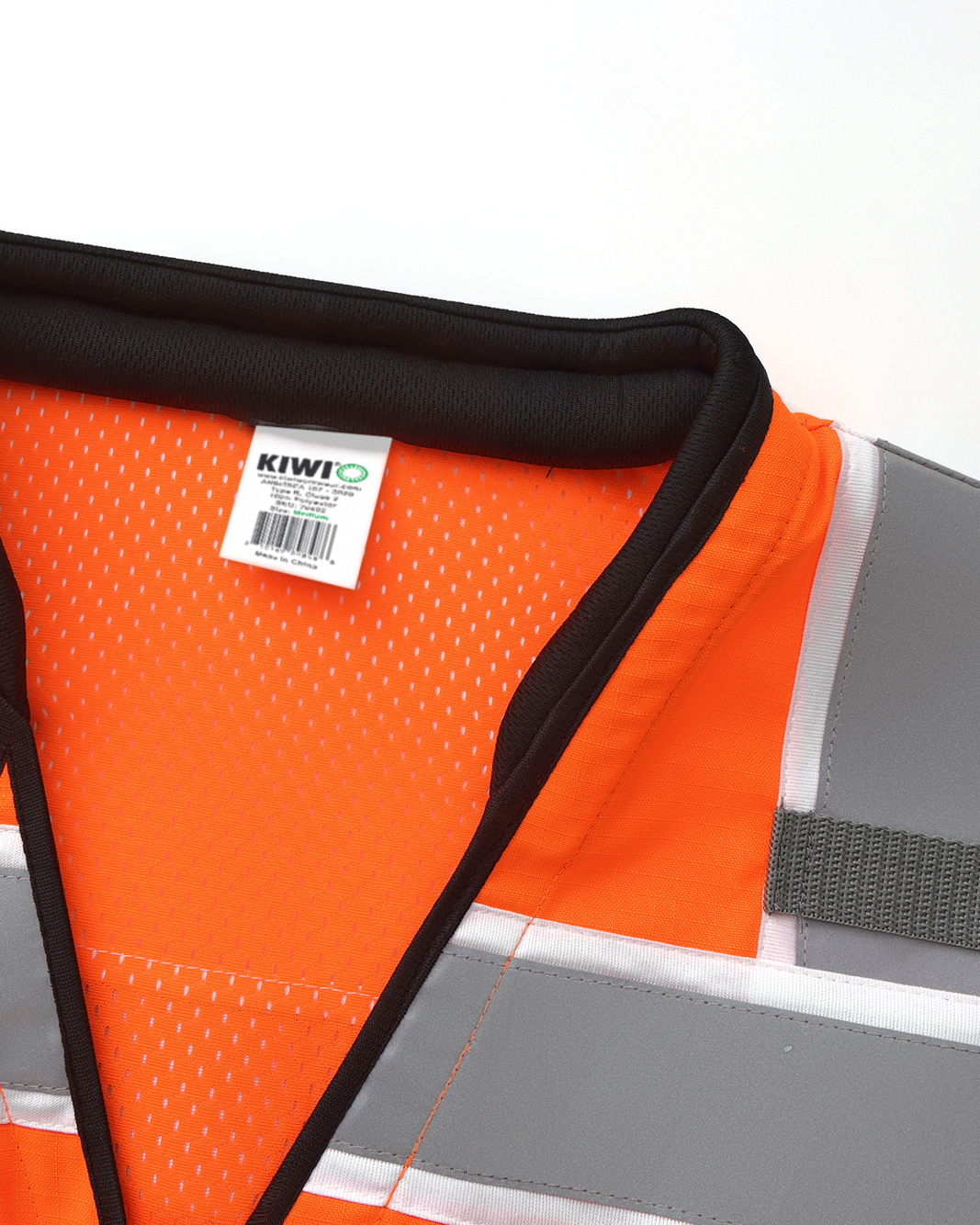

Padded Collar: Cushioned mesh collar keeps the neck comfortable through long shifts.

Mic Tab: Shoulder-mounted tab holds radios and communication devices.

Anti-Static: The fabric resists static buildup, reducing static cling and shocks during long shifts on the job.

Fit & Flexibility: Relaxed cut designed to layer comfortably over uniforms or outerwear while allowing unrestricted movement on physically demanding jobs. Black binding finishes every edge.

Safety Note: Not flame resistant [Not FR]; not intended for environments requiring fire-retardant or arc-rated protection.

SKU: 70400

Brand: Kiwi

Color: Orange / Black Trim

Made in: China

Size Range: S - 5XL

ANSI/ISEA 107-2020, Type R, Class 2 Compliant

Material: 100% Polyester

Anti-Static

Complete Your Setup

Kiwi Neon hi vis short sleeve safety shirt, front view

Kiwi High Visibility Neon Short Sleeve Safety Shirt [74200]

Small

$9.90$11.99

Kiwi Neon A1 cut resistant PU coated grip gloves, pair view

Kiwi PUD Palm Coated Stretch Polyester Knit Neon Grip Gloves [53200]

8 M Single Pair (Individually Tagged)

$4.99

Kiwi Sand steel toe 6 inch tactical boots, outside view

Kiwi Rugged Sand Suede Mid-Cut 6" Steel Toe Zipped Water Resistant Tactical Boots [60000]

M 5 (W 6.5)

$70.20$104.99

Kiwi Sightline High Visibility ANSI/ISEA 107-2020, Type R, Class 2 Dual Band Contrast Trimmed Orange Surveyor Safety Vest [70400] technology

Specifications and standards

Standards this product meets

ANSI/ISEA 107-2020
Type R
Class 2 Compliant

At a glance

Made in

China

Sizes

S - 5XL

Visibility, ANSI/ISEA 107-2020

Class

Sq in of fluorescent background

Class 1

217

Class 2

775

Class 3

1,240

Class

Sq in of reflective material

Class 1

155

Class 2

201

Class 3

310

This garment is Class 2. That class needs at least 775 square inches of fluorescent background and 201 square inches of reflective tape. The standard measures area, which is why the higher classes need sleeves. What the classes mean

Safety standards guide Sizing and care Technology and materials Compare apparel Gear by trade

The sheet opens in a new tab. Print it or save it as a PDF from there.

Ratings come from the manufacturer's testing to the standards listed. A rating tells you what the product was tested to do, not whether it is right for a specific task.

Care Instructions:
Close all hook-and-loop fasteners before washing to prevent snagging.
Machine wash cold.
Do not bleach.
Tumble dry low. Air drying is better for the reflective tape.
Do not iron.
Do not dry clean.
Do not launder industrially.

Reflective Durability:
Retains full high-visibility and retroreflective performance for up to 50 wash cycles without impairment.

Storage:
Store clean and dry, away from direct sunlight and UV exposure.

Inspection:
Inspect the garment for wear, damage, or reduced reflectivity before each use, and replace it if performance is compromised.

Retirement:
Retire the garment when the hi-vis background color is noticeably faded or the reflective tape is damaged, as rated visibility can no longer be assured.

Size Chart

Size	Small	Medium	Large	X - Large	2X - Large	3X - Large	4X - Large	5X - Large
Chest Width	23"	24"	26"	28"	30"	32"	34"	36"
Front Length (Front HSP to Bottom)	28.5"	28.5"	28.5"	28.5"	29.5"	29.5"	30.5"	30.5"
Back Length (Back HSP to Bottom)	30.5"	30.5"	30.5"	30.5"	31.5"	31.5"	32.5"	32.5"

Fit Guide

Size	Small	Medium	Large	X - Large	2X - Large	3X - Large	4X - Large	5X - Large
Chest	32-34"	36-38"	40-42"	44-46"	48-50"	52-54"	56-58"	60-62"

*All vests are sized to fit over your work clothes

Meets the requirements of ANSI/ISEA 107-2020. Kiwi high-visibility apparel is constructed with 2-inch retro-reflective stripes and durable high-visibility background material.

This garment is designed to enhance the visibility of the wearer in all work lighting conditions and environments when worn properly, maximizing the wearer's safety. While it greatly increases the wearer's ability to be seen, it does not protect against negligence on the part of vehicle operators or the wearer, and it is not designed to protect against heat, flame, or hazardous materials.

For optimal visibility, the front of the garment must be fastened. Do not wear a garment with less visibility protection over this one. Multiple sizes are available to ensure a proper fit.

Performance levels cannot be guaranteed if the garment has been damaged by accident, unreasonable use, or neglect. Clean this garment only according to the care instructions. Do not store it wet or in sunlight. If properly maintained, the garment has been tested to withstand a maximum of 50 cleaning cycles without impairment of its performance level.

Inspect this garment daily and compare it with a new garment. Discontinue use if the retro-reflective trim is damaged or the fluorescent color of the fabric is noticeably faded. Gradual degrading of background fluorescence and retro-reflective trim is expected over time with outdoor exposure and use.

Compare Our Apparel

Inventory

Variant	SKU	Barcode	Availability
Small	70401	810189898479	Out of stock
Medium	70402	810189898486	Out of stock
Large	70403	810189898493	Out of stock
X - Large	70404	810189898509	Out of stock
2X - Large	70405	810189898516	Out of stock
3X - Large	70406	810189898523	Out of stock
4X - Large	70407	810189898530	Out of stock
5X - Large	70408	810189898547	Out of stock

FAQ

Is this vest ANSI rated? Is this vest ANSI rated?

Yes. It meets ANSI/ISEA 107-2020, Type R, Class 2. Class 2 is built for workers near roadways or equipment where traffic moves from 25 to 50 mph, like road crews, parking, surveying, and warehouse yards. For traffic above 50 mph or work at night, choose Class 3. The background fabric and reflective tape meet the Class 2 minimum areas.

What is the difference between Class 2 and Class 3? What is the difference between Class 2 and Class 3?

Both are ANSI/ISEA 107-2020 visibility classes. Class 2 covers the torso. Class 3 adds visibility on the sleeves (and often the legs) with more reflective and background material. By traffic speed, Class 1 is for traffic under 25 mph, Class 2 is for traffic from 25 to 50 mph, and Class 3 is for traffic above 50 mph or work at night.

How many pockets does it have? How many pockets does it have?

Five. A large back pocket zips open from either side and fits an iPad, plans or other gear. Up front there are two chest patch pockets and two large flap-covered lower pockets. A mic tab on the shoulder stripe holds a radio mic.

What are the grommets at the front hem for? What are the grommets at the front hem for?

They hold flagging tape, so it stays within reach while you mark a site.

Is it breathable for hot weather? Is it breathable for hot weather?

Yes. The back and side panels are AirMesh™ breathable mesh, so air moves through the vest. The front is TerraWeave™ ripstop, which holds up to snags and gives the pockets a solid base.

How reflective is it in low light? How reflective is it in low light?

It uses dual band Noctis 360+™ reflective tape with white contrast trim, rated 465 cd/(lx·m²) on new reflectors against the ANSI/ISEA 107-2020 minimum of 330, and tested for 50 washes. Two bands circle the body and stripes run over both shoulders, so headlights and work lights catch you from any direction.

How do I wash it without ruining the reflective tape? How do I wash it without ruining the reflective tape?

Close the hook-and-loop fasteners, then machine wash cold on a gentle cycle, inside out, with no bleach and no fabric softener, since both break down reflective tape and high visibility color. Tumble dry low is fine. Air drying is better for the reflective tape. Following this keeps the garment compliant and bright for far longer.

How should it fit and how do I pick a size? How should it fit and how do I pick a size?

High visibility gear is cut to layer over a base layer or shirt. Order your normal size for a standard fit, or size up one if you plan to wear it over a hoodie or jacket. The inside waist drawcord lets you take in extra room. Full measurements are on this page.
